TIMINGS: | |||
Zero Hour: | - 1030 | ||
Stations: | - 0850 | ||
Start Engines: | - 0900 | ||
Taxi: | - 0910 | ||
Take Off: | - 1925 | ||
Target Time: | - ____ | ||
ETR [Estimated Time of Return]: | - ____ |
LOADING: | |
Lead - | 6 x 1000 G.P. [General Purpose] 1/10 – 1/100 [Fuses] - All A/C |
High - | Same |
Low - | Same |
Composite - | ___ |
Disposition of Forces | [Bomb Group] | Target | Time of Departure |
---|---|---|---|
"A" Gp. in 94 CBW [Combat Bomb Wing] | 401 | 0950 | |
"B" Gp. in 94 CBW | 351 | 0952 | |
"C" Gp. in 94 CBW | 457 | 0944 | |
1 Div. Lead | 1 A,B,C | ||
2nd CBW | 40 C | ||
3rd CBW | 41 A,B,C | ||
4th CBW | 94 C | ||
5th CBW | 40 A,B | ||
6th CBW | 94 A,B | ||
2nd Div. | 12 Grps. | Tactical Targets | |
3rd Div. | 14 Grps. | Strategic Targets |
Lead at | 15,000' | feet on | Kings Cliffe | Buncher |
High at | 16,000' | feet on | Kings Cliffe | Buncher |
Low at | 14,000' | feet on | Kings Cliffe | Buncher |
401st at | 15,000' | feet on | Cottesmore | Buncher |
457th at | 16,000' | feet on | Glatton | Buncher |
Composite at | ____ | feet on | ____ | Buncher |
CALL SIGN | FLARES | NAME | |
---|---|---|---|
351st | Woodcraft Baker | RG [Red Green] | |
401st | Woodcraft Able | RY | |
457th | Woodcraft Charlie | RY | |
1st Div. Air Commander | Swordfish Able | GG | Major Rooney |
94th CBW Air Commander | Woodcraft Able Lead | RY | Capt. Currie |
Fighters | Balance 2-8 | 701 |
Bombers | Vinegrove 2-12 | |
Grnd. Control | Mohair - 1st Div. Colegate - 8th A.F. |
Group Lead | ||
---|---|---|
Group Leader: | Major Jerome H. Geiger | |
Pilot: | Captain Norman A. Trapp | |
Navigator: | Lt. Albert W. Luich | |
Bombardier: | Lt. Robert E. McFarlane | |
Mickey Operator: | Lt. Arthur Schoen |
High Squadron | ||
---|---|---|
Pilot: | Capt. Vernon R. Weatherman | |
Co-Pilot: | Lt. Charles G. Hammett | |
Navigator: | Lt. Thomas C. Kyser | |
Bombardier: | Lt. Arnold Schiffman | |
Mickey Operator: | Lt. Horace E. Hardaway |
Low Squadron | ||
---|---|---|
Pilot: | Lt. Harlan E. Popp | |
Co-Pilot: | Lt. John W. Zimmerman | |
Navigator: | Lt. Orvil L. Wolz | |
Bombardier: | Lt. Jerald E. Traczewitz |
94th “C” COMBAT BOMB WING FORMATION | ||||
---|---|---|---|---|
Lead Box | High Box | Low Box | TOTAL | |
No. of A/C Failing to Take Off | 0 | 0 | 0 | 0 |
No. of A/C Airborne | 13 | 13 | 12 | 38 |
No. of A/C Airborne Less Unused Spares | 13 | 12 | 12 | 37 |
No. of A/C Sorties | 12 | 12 | 12 | 36 |
No. of A/C Attacking | 12 | 12 | 12 | 36 |
No. of A/C Not Attacking | 1 | 0 | 0 | 1 |
Name of Primary Target | KAISERSLAUTERN, GERMANY | |||
(A) No. of A/C Attacking Primary Target | 12 | 12 | 12 | 36 |
(B) No., Size & Type Of Bombs | 72 x 1000# GP | 72 x 1000# GP | 72 x 1000# GP | 216 x 1000# GP |
Name of Secondary Target | ||||
(A) No. of A/C Attacking Secondary Target | ||||
(B) No., Size & Type Of Bombs | ||||
Name of Last Resort Target (LRT) | ||||
(A) No. of A/C Attacking LRT | ||||
(B) No., Size & Type Of Bombs | ||||
Name of Target of Opportunity (T.O.) | ||||
(A) No. of A/C Attacking T.O. | ||||
(B) No., Size & Type Of Bombs | ||||
No. of A/C Lost - Total | 0 | 0 | 0 | 0 |
No. of A/C Lost - Flak | ||||
No. of A/C Lost - Flak and E/A | ||||
No. of A/C Lost - Enemy Aircraft | ||||
No. of A/C Lost - Accident | ||||
No. of A/C Lost - Unknown | ||||
Time of Take Off | 0920 | 0922 | 0924 | |
Time of Attack | 1303½ | 1303 | 1303 | |
Average Time of Flight | 6:44 | 7:00 | 7:13 | |
Altitude of Release | 24,875’ | 24,950’ | 24,275’ | |
Visual or PFF | GH | GH | GH | |
Enemy Resistance – AA Intensity & Accuracy | NONE | |||
Enemy Resistance – Fighter | 0 | 0 | 0 | 0 |
Enemy Resistance – Bombers | 0 | 0 | 0 | 0 |
U.S. A/C Engaged by Enemy Aircraft | 0 | 0 | 0 | 0 |
Degree of Success | UNOBSERVED |
GH AIRCRAFT | POSITION | |||
---|---|---|---|---|
8495 | LEAD A/C | 303 Bomb Group | ||
PFF AIRCRAFT | ||||
44-8358 | Deputy Lead | |||
44-8455 | High Sqdn Lead |
Lead Squadron, 94th "A" Group
Bombardier - 1st Lt. McFarlane, Robert E.
Pilot - Major Geiger, J.H. & Capt. Trapp, N.A.
Navigator - 1st Lt. Luich, Albert W.
Aircraft B-17G Y-495 Take-off - 0850 Landed - 1613
Objective - Kaiserslautern, Germany
Aiming Point (MPI) [Mean Point of Impact] - G.H.
Initial Point - 50°10'N., 06°50'E.
Method of Attack - Group
No. of Attacking A/C in Group: - 36 Composite Group - ____
Number A/C Dropping Bombs by own Sighting Operation: ____
Deflection and Range Sighting, Group: One Composite Group - ____
Range Sighting only, Group - __ Composite Group - ____
Bombs, Types and Sizes - 6 x 1000 Lb. AN-M44, G.P.[General Purpose] & Markers
Number of Bombs Loaded - As Above Released - Same
Fusing, Nose - 1/10 Tail - 1/100
Synchronization - On
Information at Release Point:
Altitude of Target - 820' | Magnetic Heading Ordered 127° Actual 148° | |
True Altitude Above Target - 24,875 | True Heading 142° | |
Indicated Altitude - 25,800 | Drift, Estimated 16° Right - Actual 14° Right | |
Pressure Altitude of Target +447 | True Track 156° | |
Altimeter Setting 29.92 | Actual Range 13,490' | |
Calculated Indicated Air Speed - 150K | Bomb Sight Type - M-9 | |
True Air Speed - 225K | Time of Release 1303½ | |
Ground Speed Est. 244 Actual 245 | Length of Bombing Run - 15 nukes | |
Wind Direction Metro - 20° Actual - 16° | Intervalometer Setting - 100 feet | |
Wind Velocity Metro 60 Actual 67 | C-1 Pilot [Autopilot] - X [Used] | |
D.S. - 128 Trail - 44 ATF - 41.32 | A-5 Pilot _____ | |
Tan. D.A, Est. .537 Actual .53 | Manual Pilot ____ |
Type of Release - Train 100 feet
Point of Impact If Seen - Unobserved
Mean Temp. Metro -16 Actual -16
Winds - Altitude - 26,000 Ft. Direction - Metro 20° Actual 16° Velocity - Metro 60 Actual 67
Temp C. - Metro -40° C. Actual -41° C.
508th Squadron:
A/C O-277: Don't like British rations. - Whole Crew.
A/C T-461: Formation was very good. - Crew.
509th Squadron:
A/C M-964: Why can't we fly in our own airplane? We've been promised to have a plane assigned to us for two months, but it hasn't
happened yet. - Lt. Hellman.
A/C Z-696: Suggest that we reverse the positions of the flights in the squadrons so that the high squadron is on the left of the #3
man of the lead, and the low
section fly off the #2 man of the lead. This will eliminate the whole low section looking
into the sun on the route in. We could slide back into our regular positions at the I.P. - Lt. Hammond.
511th Squadron:
A/C C-694: Had a hard time getting wind due to the constant zig-zagging on the route in. - Lt. Walker.
Why don't we fly formation as called for in the SOP [Standard Operating Procedure], instead of flying the elements
in trail. - Lt. Johnson.
Suggest that the trucks which travel between the main site and the other site have signs on them telling of their
destination. Especially would this be of a great advantage for after the show, as sometimes you board a truck thinking
you are going to the main site and you end up in site 3. - Lt. Reznik.
a. 94th Combat Wing "B" Group Lead Squadron - 351st Group |
---|
Sqdn 508th A/C: A–8410, B–7349, C–8753, F–1711, L–7956, M–7900, O–8277, Q–8799, Y–6108 |
Sqdn 509th A/C: (A–8358 PFF) |
Sqdn 510th A/C: A–8465, (T–8461 Spare) |
Sqdn 511th A/C: None |
Sqdn 427th A/C: (Y–8495 GH) |
b. 94th Combat Wing "B" Group Low Squadron - 351st Group |
---|
Sqdn 508th A/C: D–8405 |
Sqdn 509th A/C: None |
Sqdn 510th A/C: D–7957 |
Sqdn 511th A/C: A–8428, C–8694, F–7705, G–8070, H–8435, K–8585, M–8650, P–2676, U–7381, X–6802 |
c. 94th Combat Wing "B" Group High Squadron - 351st Group |
---|
Sqdn 508th A/C: None |
Sqdn 509th A/C: C–8640, G–6078, L–7193, M–7964, N–7169, P–7843, R–6156, T–1384, V–7854, U–8591, Z–7696, (Q–8116 Spare) |
Sqdn 510th A/C: None |
Sqdn 511th A/C: (O–8455 PFF) |
Squadron | 508 [Call Sign] | W/T WDM R/T CARLTON | Squadron | 510 [Call Sign] | W/T SYN R/T TIPSTAFF | |
---|---|---|---|---|---|---|
Squadron | 509 [Call Sign] | W/T UXA R/T HOTMINT | Squadron | 511 [Call Sign] | W/T TNP R/T PARTNERSHIP |

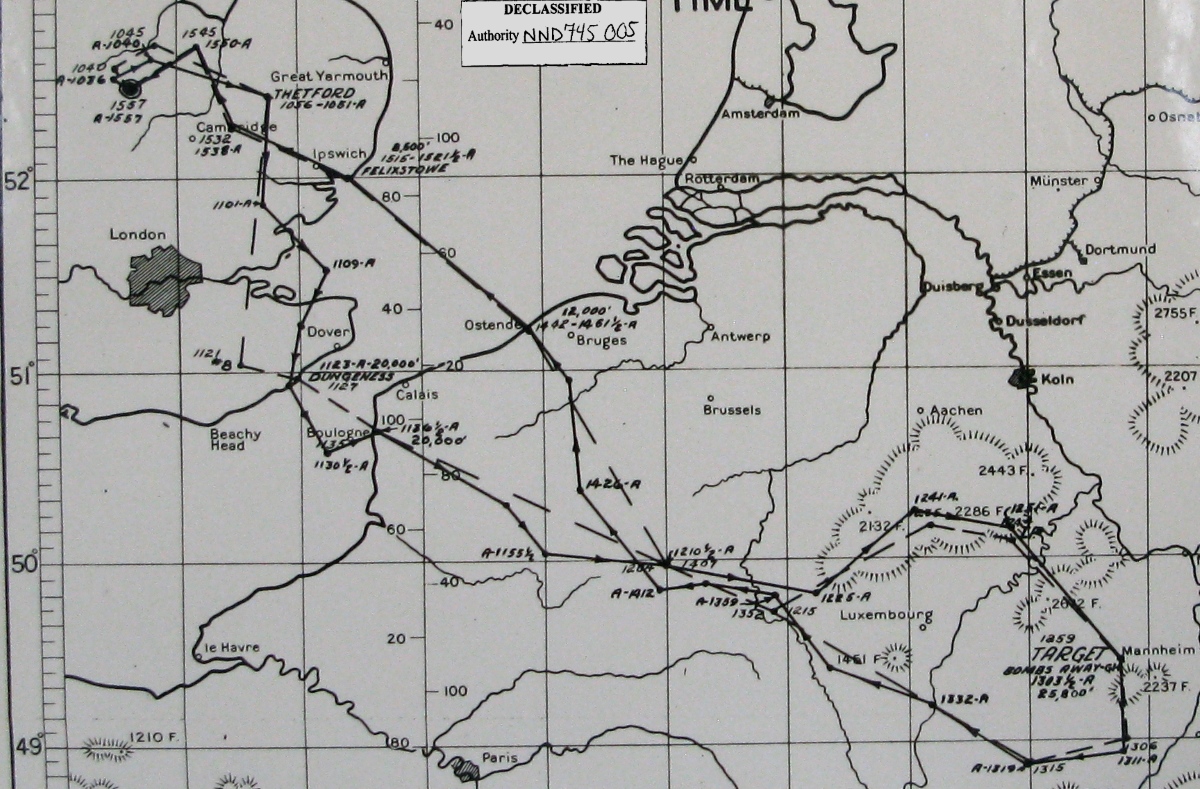

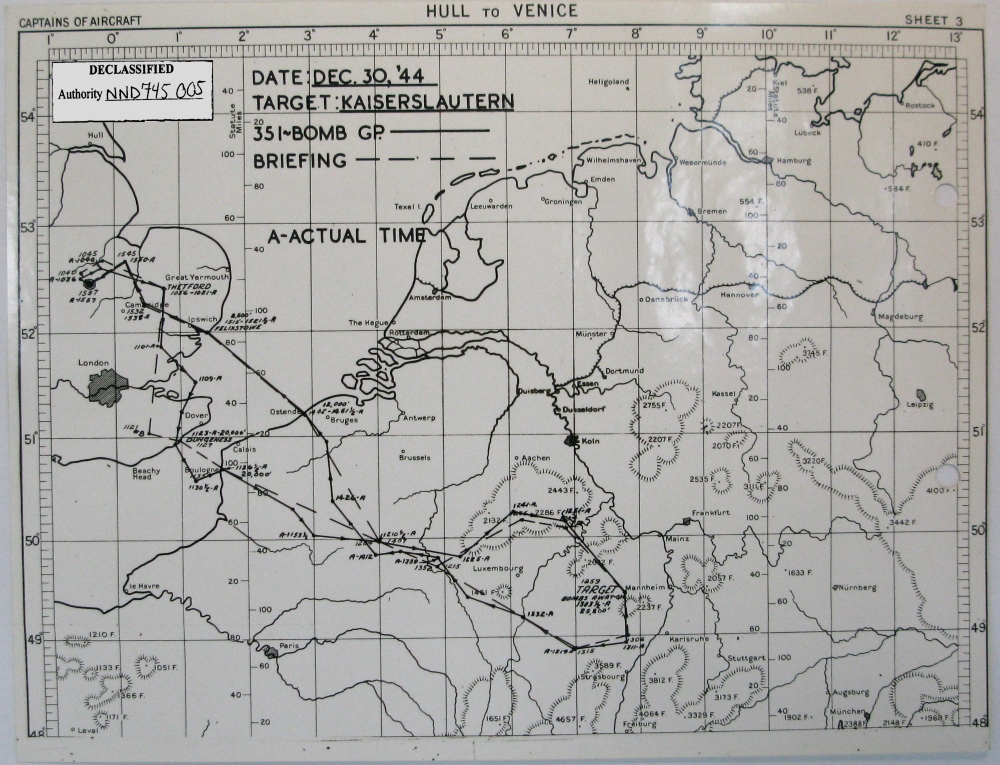

Time: | Height: | Place of Crossing English Coast: (OUT) |
---|---|---|
1127 | 20,000 Ft | Dungeness |
Time: | Height: | Place of Crossing Enemy Coast: (IN) |
---|---|---|
1135 | 20,000 Ft | 52°42'N-01°34'E [This co-ordinate is near Great Yarmouth, England] |
Time: | Height: | Place of Crossing Enemy Coast: (Out) |
---|---|---|
1442 | 10,000 Ft | 51°13'N-02°55'E [Ostend, Belgium] |
Time: | Height: | Place of Crossing English Coast: (IN) |
---|---|---|
1515 | 5,000 Ft | Felixstowe |
Report Compiled By D.W. Grasmehr, Sgt.
94th "B" Combat Bomb Group - Lead Squadron Formation at Take–Off | ||||||||
---|---|---|---|---|---|---|---|---|
508th Squadron | ||||||||
Geiger–Trapp A/C 44-8495 Y GH | ||||||||
Crutcher A/C 43-38753 C | Moulton A/C 44-8358 A PFF | |||||||
Sullivan A/C 44-8410 A | Stahl A/C 42-97349 B | |||||||
Zimmerman A/C 43-38277 O | Parnell A/C 43-37956 L | Lenze A/C 44-6108 Y | Wiese A/C 43-38799 Q | |||||
Glazier A/C 43-37900 M | Bullock A/C 43-38461 T Spare | |||||||
Molitor A/C 43-38465 A | Kale A/C 42-31711 F |
94th "B" Group Lead Squadron Formation Over–Target | ||||||||
---|---|---|---|---|---|---|---|---|
508th Squadron | ||||||||
Geiger–Trapp A/C 44-8495 Y GH | ||||||||
Crutcher A/C 43-38753 C | Moulton A/C 44-8358 A | |||||||
Sullivan A/C 44-8410 A | Stahl A/C 42-97349 B | |||||||
Zimmerman A/C 43-38277 O | Parnell A/C 43-37956 L | Lenze A/C 44-6108 Y | Wiese A/C 43-38799 Q | |||||
Molitor A/C 43-38465 A | ||||||||
Bullock A/C 43-38461 T | Kale A/C 42-31711 F |
94th "B" Combat Bomb Group - High Squadron Formation at Take–Off and Over Target | ||||||||
---|---|---|---|---|---|---|---|---|
509th Squadron | ||||||||
Weatherman A/C 44-8455 O PFF | ||||||||
Barker A/C 44-6078 G | Knight A/C 43-38116 Q | |||||||
Hammond A/C 43-37696 Z | Crews A/C 42-97169 N | |||||||
Whittaker A/C 43-38591 U | Beveridge A/C 43-39001 M | Della-Cioppa A/C 42-31384 T | Claggett A/C 43-38640 C | |||||
Mueller A/C 43-37964 M | Foreman A/C 42-97843 C Spare* | |||||||
Johnson, E.G. A/C 42-97193 L | Maddux A/C 43-37854 V |
94th "B" Combat Bomb Group - Low Squadron Formation at Take–Off and Over Target | ||||||||
---|---|---|---|---|---|---|---|---|
511th Squadron | ||||||||
Popp A/C 43-38405 D | ||||||||
McNamara A/C 43-38428 A | Nay A/C 43-37957 D | |||||||
Johnson, H.C. A/C 43-38694 C | Lambert A/C 44-6802 X | |||||||
Butler A/C 42-97381 U | Kasper A/C 43-38650 M | Langdon A/C 43-37705 F | Schwartz A/C 43-38435 H | |||||
Hadley A/C 43-38585 K | ||||||||
Taylor A/C 43-38070 G | Fox A/C 42-102676 P |
